Deformation Monitoring at Maasbracht Lock, NL
Maasbracht, The Netherlands
Project duration: 2025 – 2026
A geodetic deformation study was carried out at the Maasbracht lock using GNSS-based sensor technology. This pilot project evaluates a new acquisition method to detect subtle expansion and contraction along the lock walls. Continuous monitoring strengthens data-driven asset management and enhances collaboration multiple departments of Rijkswaterstaat.
Direct insight into lock movements to prevent the jamming of the doors and ensure continuous navigational availability.
Project Purpose
The objective is to monitor longitudinal deformation of the lock walls. Previous measurement results and higher safety standards prompted the use of an alternative and independent technique, providing more reliable detection of structural movement over time.
Implemented Solution

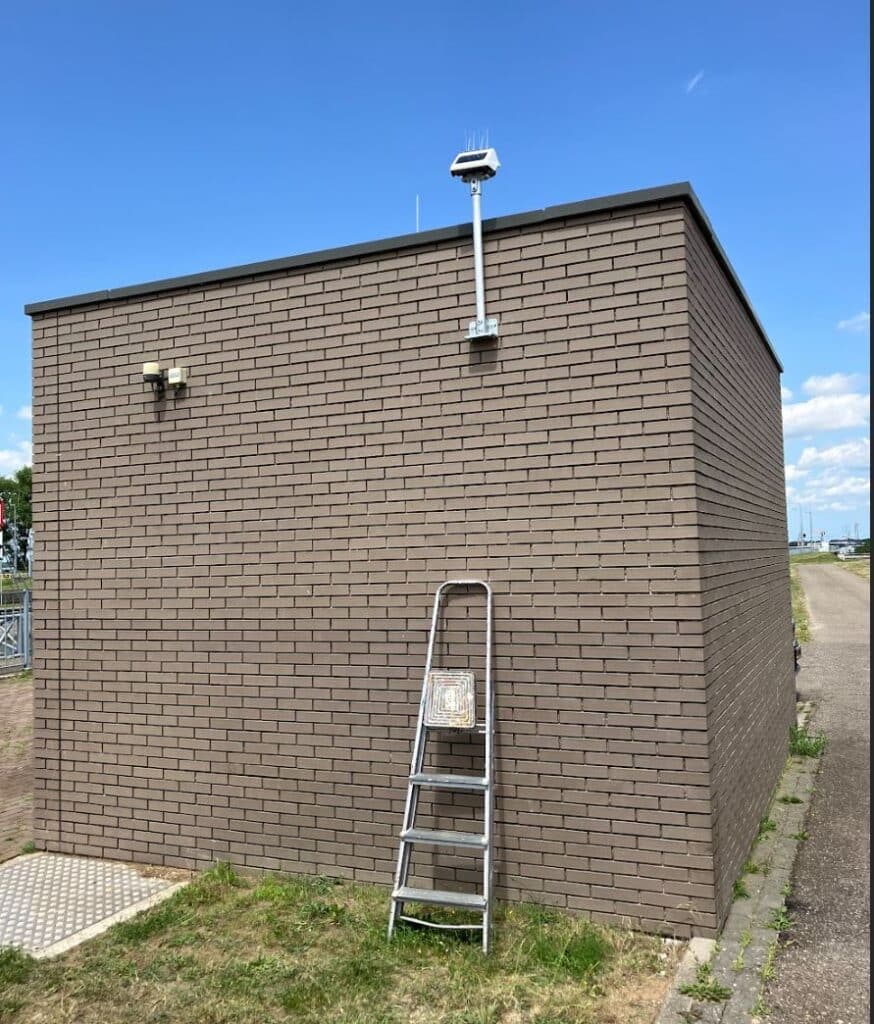

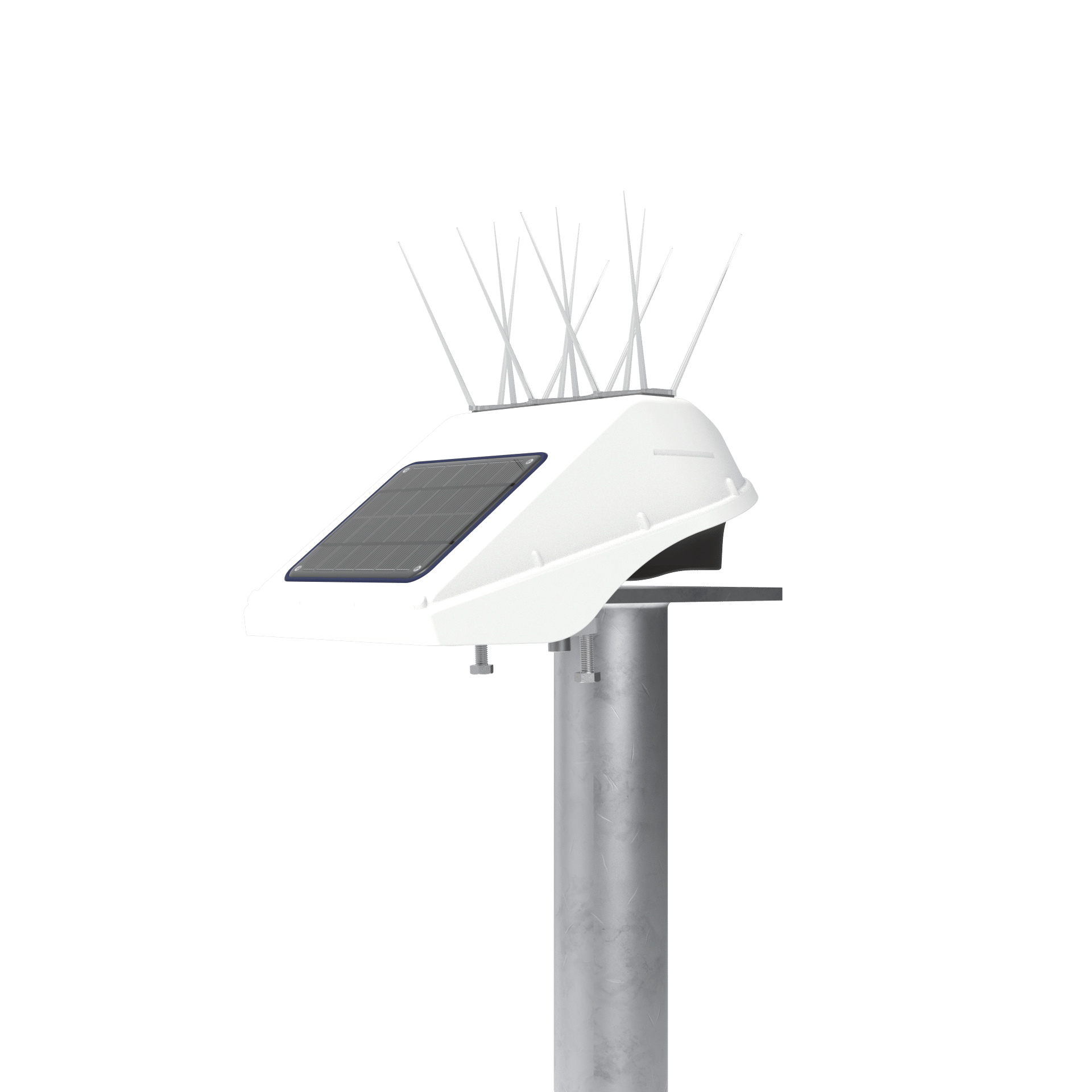

Eight GNSS sensors were installed on the central lock chamber, supported by one stable reference station outside the lock. Each sensor collects four measurements per day over a full annual cycle. The configuration provides position accuracy of 2 mm (X/Y) and 4 mm (Z), enabling continuous and precise deformation monitoring.
